Locking Unit Type AS

Type AS-12

Locking Unit Type AS
  • Overview
  • Specifications
  • Download

  1. Introduction

•12 type is used to transmit large torque.


  1. Applying Scene

Shaft diameter is from 9mm to 100mm and transmissible torque is from 0.02kNm to 15.8kNm.

  1. Outline Dimension

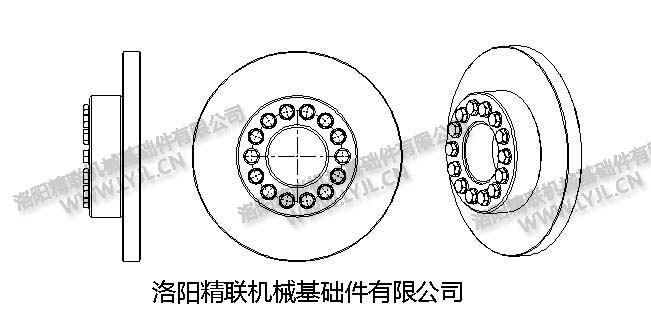

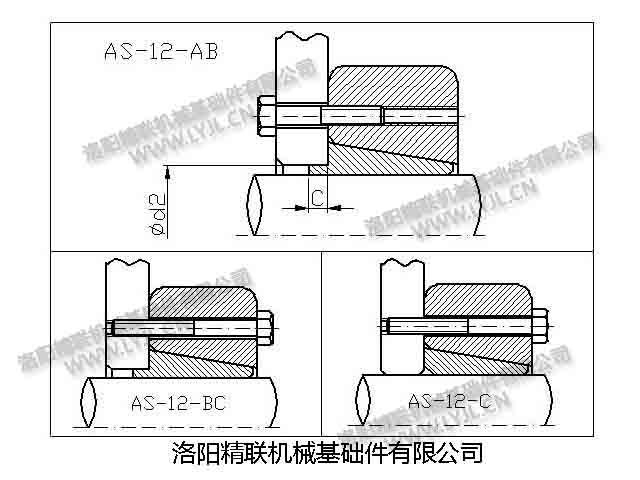

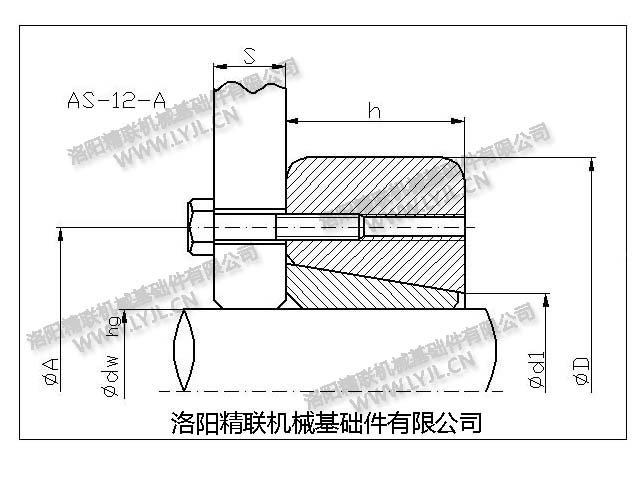

  • Type AS-12
AS12系列
基本参数
螺栓
重量
型号
dw
Mt
A
D
I
h
C
d1
d2
数量与规格
拧紧力矩
Weight
Type
mm
Nm
mm
mm
mm
mm
mm
mm
mm
 　
Nm
kg
AS 10-12
11
20
25
39
9
10
1.5
13
12
3-M6
12
0.1
10
20
9
20
AS 12-12
13
50
28
44
12
13
1.5
16
14
3-M6
12
0.1
12
50
11
50
AS 15-12
16
130
36
52
14
15
2
21
18
3-M8
29
0.2
15
130
14
130
AS 20-12
20
200
42
60
16
17
2
26
22
3-M8
29
0.3
18
200
16
200
AS 25-12
25
340
48
66
18
19
2
32
27
5-M8
29
0.4
22
340
20
340
AS 30-12
30
550
56
76
20
21
2
38
32
6-M8
29
0.6
28
550
25
550
AS 40-12
40
1,060
70
96
24
25
3
47
43
6-M10
58
1.2
35
1,060
30
1,060
AS 50-12
50
2,200
84
112
29
30
3
58
53
7-M12
100
1.8
45
1,800
40
1,000
AS 60-12
60
3,200
94
120
32
34
3
66
63
9-M12
100
2.2
55
3,200
50
2,300
AS 70-12
70
5,800
112
148
38
40
4
79
74
8-M16
240
4.2
65
5,800
60
4,500
AS 80-12
80
8,600
130
170
42
44
4
94
84
9-M16
240
6.1
75
8,600
70
6,900
AS 90-12
90
12,000
144
185
48
50
4
104
94
12-M16
240
8
85
12,000
80
10,700
AS 100-12
100
15,800
156
197
52
54
4
114
104
14-M16
240
9.5
95
15,800
90
15,800
