Shaft Coupling

Type WKD

Shaft Coupling
  • Overview
  • Specifications
  • Download

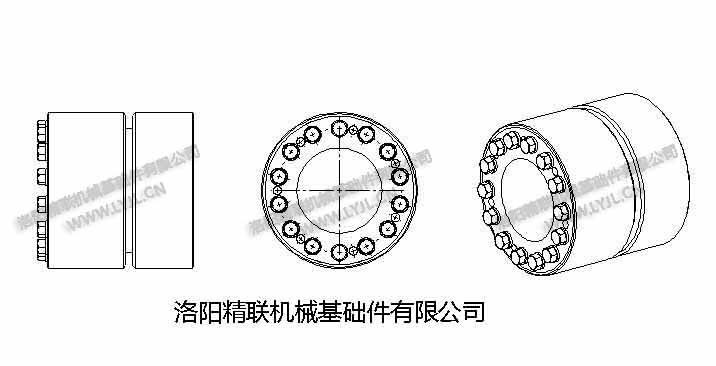

  1. Introduction
  • • The structure of WKD coupling is simple and the space of installation is small.The tolerance of shaft is h8.Its flexibility is good.Outside ring has groove and it indicates installation distance of coupling shaft.It controls the length of installation place.Tightening bolt and tapered face grease lubricant.Taper is locked by itself .Use removal bolt while disassemble.
  • • Installation and removal is the same as that of shrink disc.Installation checking:jumping ring and middle ring must contact firmly.

  1. Applying Scene

Shaft diameter is from 8mm to 160mm and transmittable torque is from 0.02kNm to 117.5kNm.

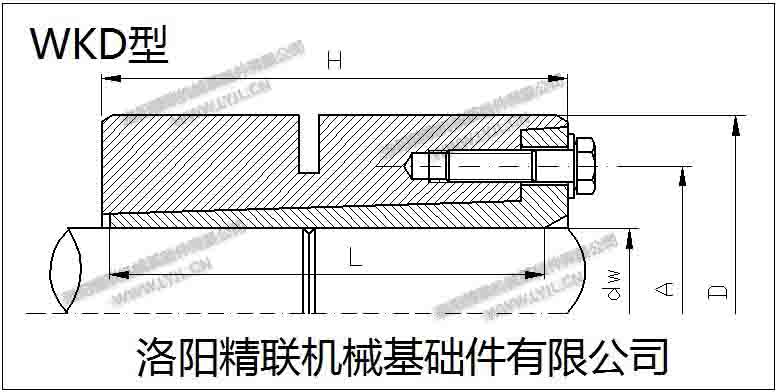

  1. Outline Dimension
  • Type WKD型
联轴器  WKD
轴径
额定扭矩
额定轴向力
拧紧力矩
基本尺寸
重量
型号
dw
MT(Pax=0)
Pax(Mx=0）
Ma
D
A
H
L
Weight
Type
mm
Nm
KN
Nm
mm
mm
mm
mm
Kg
WKD10
8
20
5
5
35
24
26
24
0.19
10
30
6
WKD12
11
40
7
5
40
26
30
27
0.27
12
60
10
WKD15
14
90
13
12
45
30
34
31
0.38
15
120
16
WKD20
18
200
22
12
50
38
42
38
0.56
20
280
28
WKD25
22
290
26
12
55
42
50
46
0.78
25
390
30
WKD30
28
510
36
12
60
48
56
52
0.97
30
640
43
WKD35
32
810
50
12
66
54
62
57
1.27
35
1000
57
WKD40
36
1,220
68
12
78
62
70
65
2.07
40
1,600
80
WKD50
42
1,900
90
29
94
76
88
82
3.84
50
3,100
124
WKD60
55
4,080
148
29
114
90
104
96
6.39
60
5,100
170
WKD70
65
6,400
197
29
128
102
120
114
9
70
7,700
220
WKD80
75
10,600
282
58
146
116
136
130
13.16
80
12,900
322
WKD90
85
14,400
339
58
164
130
150
142
18.19
90
17,000
378
WKD100
95
23,000
484
100
176
146
164
156
22.2
100
27,200
544
WKD110
105
31,300
595
100
190
156
178
170
27.52
110
36,100
656
WKD120
115
39,800
692
240
205
172
190
180
33.74
120
45,600
763
WKD140
130
61,400
944
240
240
196
210
200
52.7
140
73,200
1,046
WKD160
150
96,000
1,280
470
280
224
230
216
79.27
160
117,500
1,469
