Flange Coupling

Type FKHA

Flange Coupling
  • Overview
  • Specifications
  • Download

  1. Introduction

•The prominent advantage of all our products is fast installation and removal.
• We provide suited drilling way to divide flange connection equally.

• FKH full flange connection type.

• FKH half flange connection type.


  1. Applying Scene

Shaft diameter is from 95mm to 320mm and transmittable torque is from 17kNm to 800kNm.

  1. Outline Dimension

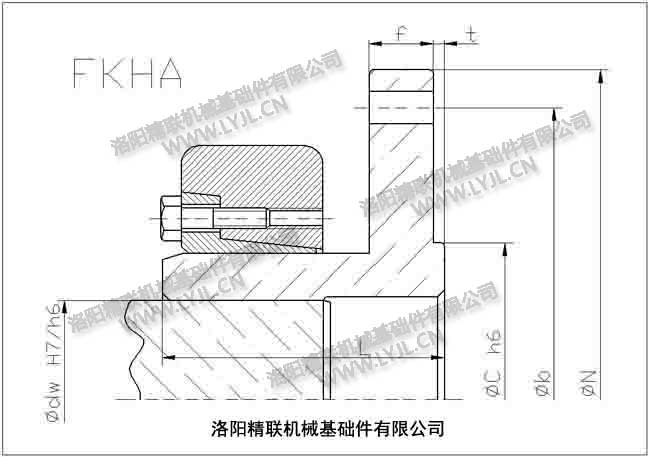

  • Type FKHA
FKHA系列
参数
锁紧盘
基本参数
法兰螺栓
重量
型号
dw
Mt
型号
拧紧力矩
N
b
c
L
f
t
数量与规格

拧紧力矩
Weight
Type
mm
Nm
 　
Nm
mm
mm
mm
mm
mm
mm
 　
Nm
kg
FKHA 340-100
95
17,000
HSD 140-22
160
340
280
200
95
24
6
5-M24
720
28
100
19,000
110
24,000
FKHA 370-120
115
30,000
HSD 155-22
160
370
310
220
114
30
6
8-M24
720
40
120
33,000
125
36,000
FKHA 400-120
120
35,000
HSD 165-22
240
400
350
250
114
30
6
8-M24
720
50
125
38,000
130
42,000
FKHA 400-130
130
42,000
HSD 175-22
240
400
350
250
114
30
6
8-M24
720
51
135
46,000
140
50,000
FKHA 470-140
140
61,000
HSD 185-22
240
470
416
280
139
36
6
10-M30
1450
80
145
67,000
150
72,000
FKHA 470-150
150
78,000
HSD 200-22
240
470
416
280
139
36
6
10-M30
1450
84
155
84,000
160
90,000
FKHA 520-160
160
101,000
HSD 220-22
470
520
456
320
150
36
8
12-M30
1450
112
165
109,000
170
117,000
FKHA 560-180
170
122,000
HSD 240-22
470
560
496
360
161
36
8
16-M30
1450
137
180
140,000
190
159,000
FKHA 560-200
190
163,000
HSD 260-22
470
560
496
360
161
36
8
16-M30
1450
152
200
184,000
210
207,000
FKHA 590-220
210
215,000
HSD 280-22
470
590
526
380
196
40
8
18-M30
1450
184
220
240,000
230
267,000
FKHA 630-250
230
272,000
HSD 320-22
820
630
550
430
204
40
8
18-M30
1450
242
250
332,000
260
364,000
FKHA 710-280
260
455,000
HSD 360-22
820
710
656
480
225
40
8
24-M30
1450
342
280
539,000
290
584,000
FKHA 800-300
290
640,000
HSD 390-22
1,210
800
736
520
250
50
8
28-M30
1450
451
300
691,000
320
800,000
