- Introduction
- • Withdrawal sleeve be usually used in shaft end which is fixing bearing with bigger taper bore (self-aligning ball bearing,self-aligning roller bearing).Its removal and maintaining are convenient especially.It is widely used in light industry,paper making,mine mechanical equipments such as rolling mill.
- • (adopt equivalently ISO113/2 or DIN5416) shaft matching with withdrawal sleeve has larger diameter tolerance.It can choose h7,h8,h9.
- Applying Scene
-

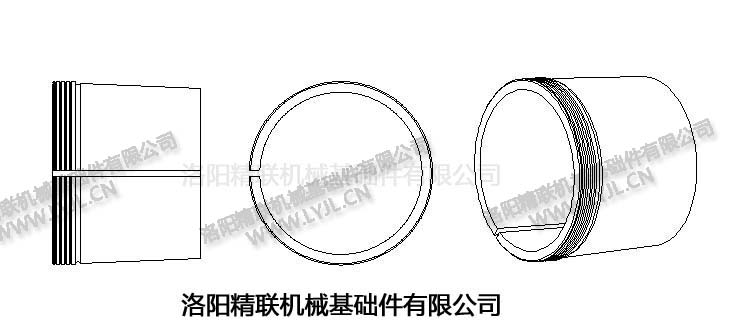

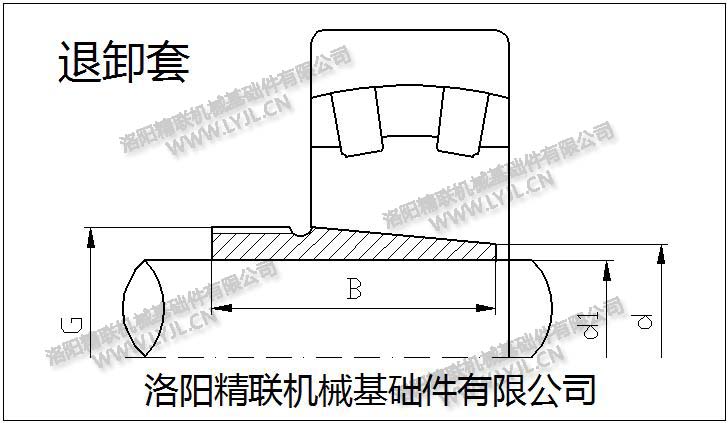

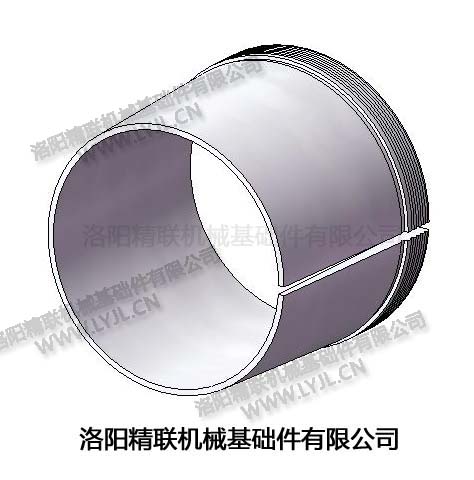

Outline Dimension
AH 3系列 |
基本尺寸（mm） |
适用 |
重量 |
||||
型号 |
轴径 |
Dimensions |
拆卸螺纹 |
轴承型号 |
Weinght |
||
Type |
d1 |
d |
B3 |
G |
Bearing in use |
Kg |
|
AH308 |
35 |
40 |
29 |
45*1.5 |
22208CK |
21308CK |
0.09 |
AH309 |
40 |
45 |
31 |
50*1.5 |
22209CK |
21309CK |
0.11 |
AH310 |
45 |
50 |
35 |
55*2 |
22210CK |
22210CK |
0.14 |
AH311 |
50 |
55 |
37 |
60*2 |
22211CK |
21311CK |
0.16 |
AH312 |
55 |
60 |
40 |
65*2 |
22212CK |
21312CK |
0.19 |
AH313 |
60 |
65 |
42 |
75*2 |
22213CK |
21313CK |
0.26 |
AH314 |
65 |
70 |
43 |
80*2 |
22214CK |
21314CK |
0.28 |
AH315 |
70 |
75 |
45 |
85*2 |
22215CK |
21315CK |
0.32 |
AH316 |
75 |
80 |
48 |
90*2 |
22216CK |
21316CK |
0.37 |
AH317 |
80 |
85 |
52 |
95*2 |
22217CK |
21317CK |
0.43 |
AH318 |
85 |
90 |
53 |
100*2 |
22218CK |
21318CK |
0.46 |
AH319 |
90 |
95 |
57 |
105*2 |
22219CK |
21319CK |
0.54 |
AH320 |
95 |
100 |
59 |
110*2 |
2220CK |
21320CK |
0.58 |
AH322 |
105 |
110 |
63 |
120*2 |
21322CK |
0.67 |
|
