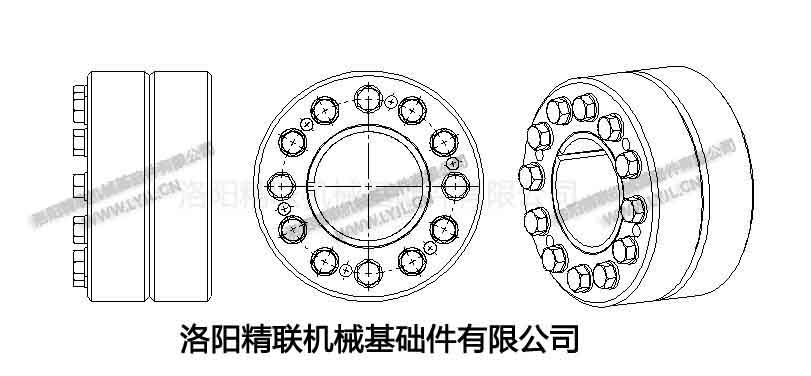

Type WK

Shaft Coupling

Overview
Specifications
Download

Introduction

• Universal property of WK coupling is better and connection is simple and reliable.Tolerance is
h8 when shaft diameter is less than 80mm and tolerance is h9 while shaft diameter is greater than 80mm.The clearance between two shaft should not exceed 5% of shaft diameter.The length of two shaft inserting coupling should be equal.It can make two shaft transmitting the same torque.

Applying Scene

Shaft diameter is from 25mm to 250mm and the chosen hub length

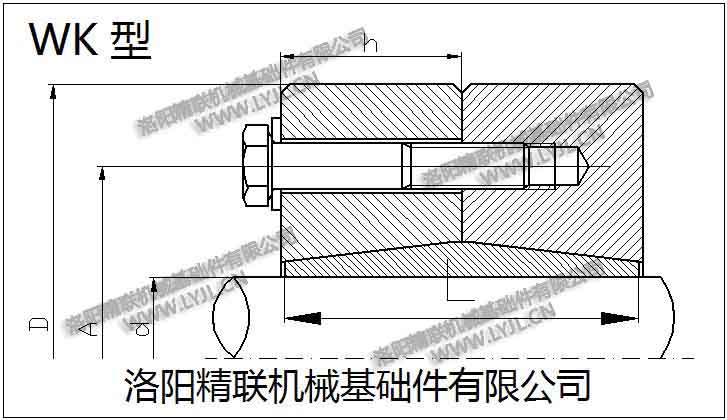

Outline Dimension

WK型

联轴器 WK	轴径	额定扭矩	额定轴向力	拧紧力矩	基本尺寸				重量
型号	dw	MT(Pax=0)	Pax(Mx=0）	Ma	D	L	h	A	Weight
Type	mm	Nm	KN	Nm	mm	mm	mm	mm	Kg
WK25	25	460	37	29	66	38	19	48	0.6
	29	610	42
WK30	30	700	47	29	76	42	21	56	0.9
	32	810	51
	35	970	55
WK40	36	1,270	71	58	96	50	25	70	1.8
	40	1,550	77
	43	2,000	93
WK50	44	2,100	95	58	112	60	30	84	3
	50	2,900	116
	54	3,600	133
WK60	55	4,000	145	58	120	70	34	94	4.1
	60	5,100	170
	62	5,600	181
WK70	63	6,500	206	58	148	80	40	112	6.6
	70	8,600	246
	73	9,600	263
WK80	74	10,200	276	100	167	94	44	130	10
	80	12,300	307
	85	14,200	334
WK90	86	14,900	346	240	182	104	50	144	14
	90	16,400	364
	95	19,100	402
WK100	96	20,500	427	240	197	114	54	156	17
	100	22,700	454
	106	25,900	489
WK120	107	32,600	609	240	230	138	65	186	27
	120	42,900	715
	125	46,800	749
WK140	126	50,800	806	470	274	160	76	216	46
	140	66,600	951
	150	77,900	1,039
WK160	151	78,000	1,033	470	310	176	83	234	56
	160	87,900	1,099
	165	97,000	1,176
WK180	166	107,800	1,299	470	340	200	94	276	80
	180	131,400	1,460
	185	140,000	1,514
WK200	186	153,000	1,645	470	270	228	107	290	114
	200	183,500	1,835
	210	204,300	1,946
WK220	211	214,600	2,034	820	405	250	118	320	150
	220	237,000	2,154
	230	262,800	2,285
WK240	231	280,000	2,424	820	430	270	128	340	181
	240	306,700	2,556
	250	334,200	2,674
