Cardan Shaft Coupling

Type GF22

Cardan Shaft Coupling

Overview
Specifications
Download

Introduction

• GF21 type is used to transmit large torque.

Applying Scene

Shaft diameter is from 65mm to 220mm and transmissible torque is from 7kNm to 229kNm.

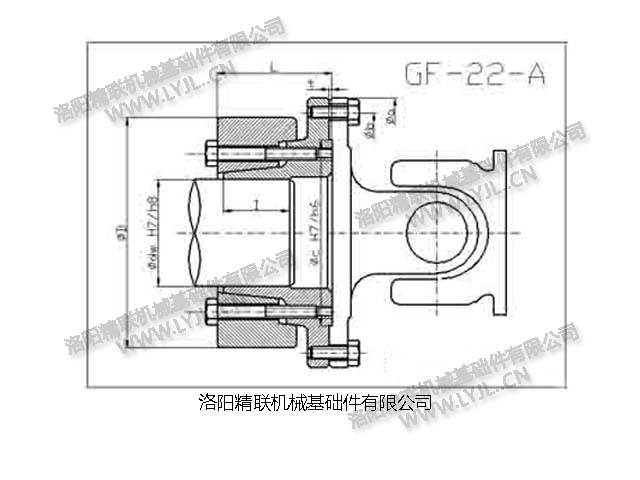

Outline Dimension

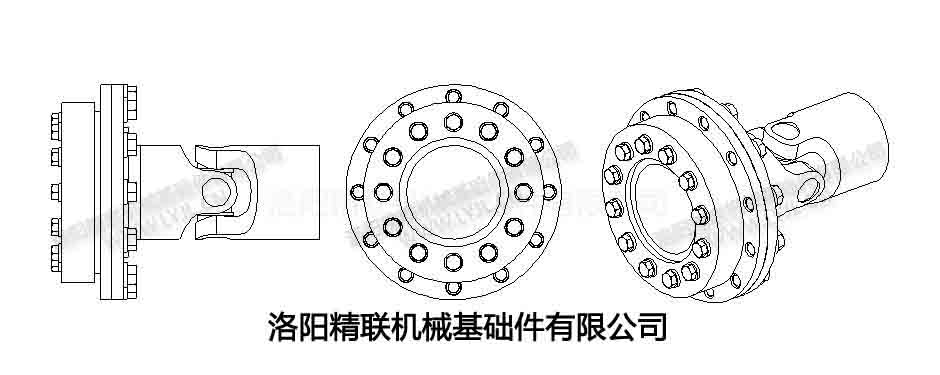

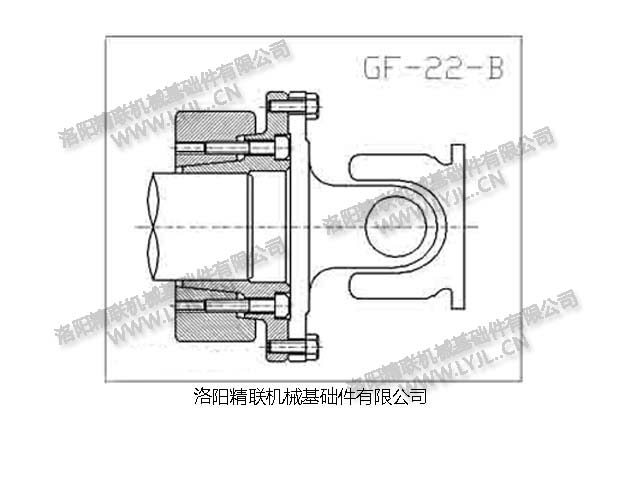

Type GF22

GF22系列	参数		锁紧螺栓		基本参数							法兰螺栓
型号	dw	Mt	规格	拧紧力矩	D	I	L	a	b	c	t	规格	拧紧力矩	数量
Type	mm	Nm		Nm	mm	mm	mm	mm	mm	mm	mm		Nm	No.
GF 180-22	65	7,000	M14	160	170	43	68	180	155.5	110	2.5	M14-40	160	8
	75	10,000
	85	15,000
GF 225-22	80	12,000	M16	240	197	53	86	225	196	140	4	M16-40	240	8
	90	17,000
	100	24,000
GF 250-22	90	18,000	M16	240	215	56	90	250	218	140	5	M18-40	340	8
	100	25,000
	110	33,000
GF 285-22	90	20,000	M20	470	230	62	100	285	245	175	5	M20-40	470	8
	110	34,000
	120	43,000
GF 315-22	110	37,000	M24	820	290	73	114	315	280	175	5	M22-50	640	8
	130	58,000
	140	71,000
GF 350-22	130	52,000	M24	820	340	91	136	350	310	220	7	M22-55	640	10
	160	91,000
	180	124,000
GF 390-22	160	95,000	M24	820	370	104	152	390	345	250	7	M24-60	820	10
	180	131,000
	200	172,000
GF 435-22	180	136,000	M27	1,210	405	115	173	435	385	280	8	M27-70	1,210	10
	200	179,000
	220	229,000
