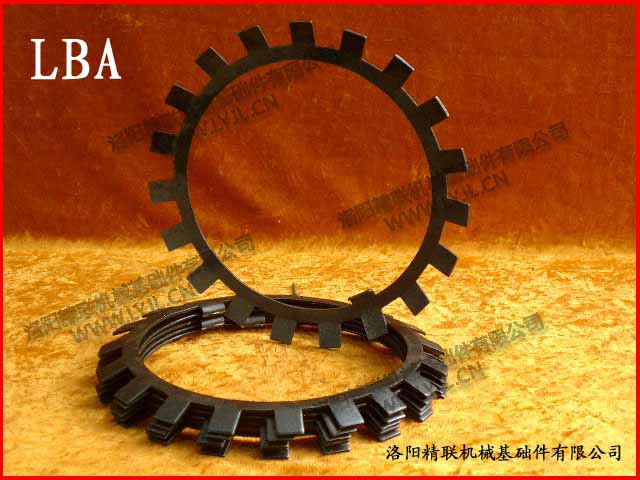

Lockwashers

Type MB

Lockwashers
  • Overview
  • Specifications
  • Download
  1. Introduction

  • Applying Scene





  1. Outline Dimension

  • Lockwashers
锁紧垫圈
外型尺寸(mm)
重量
型号
d3
d5
M
f1
B1
Kg(100个)
MB 04
20
36
18.5
4
1.00
0.50
MB 05
25
42
23.0
5
1.25
0.70
MB 06
30
49
27.5
5
1.25
0.80
MB 07
35
57
32.5
6
1.25
1.04
MB 08
40
62
37.5
6
1.25
1.23
MB 09
45
69
42.5
6
1.25
1.52
MB 10
50
74
47.5
6
1.25
1.60
MB 11
55
81
52.5
8
1.5
1.96
MB 12
60
86
62.5
8
1.5
2.53
MB 13
65
92
66.5
8
1.5
2.90
MB 15
75
104
76.5
8
1.5
3.56
MB 16
80
112
81.5
10
1.8
4.64
MB 17
85
119
86.5
10
1.8
5.24
MB 18
90
126
91.5
10
1.8
6.23
MB 19
95
133
96.5
10
1.8
6.70
MB 20
100
142
100.5
12
1.8
7.65
MB 22
110
154
105.5
12
1.8
9.40
MB 24
120
164
115
14
2
10.50
MB 26
130
175
125
14
2
11.30
MB 28
140
192
135
16
2
14.20
MB 30
150
215
145
16
2
15.50
MB 32
160
217
154
18
2.5
22.20
MB 34
170
232
164
18
2.5
24.70
MB 36
180
242
174
20
2.5
26.80
MB 38
190
252
184
20
2.5
27.80
MB 40
200
262
194
20
2.5
29.30
